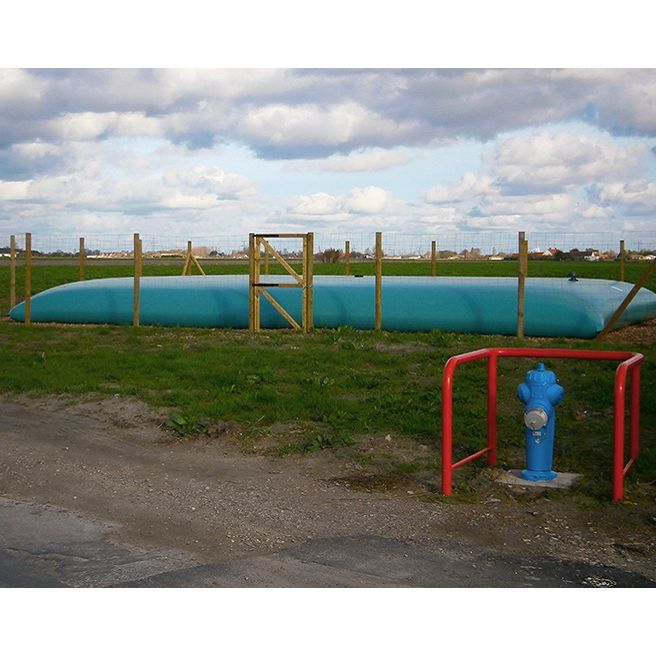

Lub teeb yuag yuag Tank rau kev daws teeb meem
Khoom siv: siab tsis kam 1300 g / m2 daim ntaub
Txheej: ob -sab PVC
Dimensions: txheem thiab kev cai ua raws li kev thov> hu rau peb
Kev sib dhos: siab- zaus vuam
Kub tiv thaiv: -30℃rau + 70 degree
Accessories:
1 DN 140 welded qhov cua rau cov ntsia hlau- nyob rau hauv nrog roj tso valve
1 DN 80 luj tshib hla nrog symmetrical connector thiab cap
1 DN 50 PPG lub quarter- tig guillotine valve los ua ke + DN 50 symmetrical connector thiab cap
4 lub kaum sab xis
1 kho cov khoom siv
Thermal valve tiv thaiv
Khoom Taw qhia
Cov ntaub ntawv technical
|
Ref. |
Qhov siab (m3) |
Qhov ntev (m) |
Qhov hnyav (kg) |
Ntim (mm) |
Sab filling/draining |
|
CSY 60 |
60 |
5.92x10.70x1.4 |
170 |
1340x940x1080 |
1 x Ø4'' |
|
TSI 90 |
90 |
7.40x11.82x1.5 |
298 |
1340x940x1080 |
1 x Ø4'' |
|
TSI 120 |
120 |
8.88x12.52x1.5 |
298 |
1340x940x1080 |
1 x Ø4'' |
|
TSI 160 |
160 |
10.36x13.73x1.5 |
428 |
1340x940x1080 |
1 x Ø4'' |
|
TSI 240 |
240 |
10.36x19.66x1.5 |
541 |
2170x1260x1380 |
1 x Ø4'' |
|
TSI 360 |
360 |
3.32x21.95x1.5 |
777 |
2200x1700x1000 |
1 x Ø4'' |
Nta
Peb Lub Tank Yooj Yim Yooj Yim rau Kev Nyab Xeeb Kev Nyab Xeeb yog tsim los ua kom tau raws li ntau yam kev nyab xeeb thoob ntiaj teb thiab cov qauv kev ua haujlwm, ua rau nws tsim nyog tsis yog rau kev kub ntxhov nkaus xwb tab sis kuj rau ntau qhov xwm txheej tshwm sim kev puas tsuaj- kom ntseeg tau tias kev siv hluav taws xob ntau dua thiab kev ua raws li cov cheeb tsam sib txawv.
Nrog rau qhov hnyav txo qis thiab txhim kho kev txav mus los, Lub Hwj Chim Flexible Tank rau Kev Tiv Thaiv Kev Puas Tsuaj tso cai rau ultra- kev xa tawm sai thiab txav mus los txawm nyob hauv qhov chaw nyuaj tshaj plaws, muab cov dej tseem ceeb cia hauv feeb yam tsis tas yuav siv cov tshuab hnyav lossis kev ua haujlwm hauv pej xeem.
Engineered nrog siab -frequency welded seams thiab ib tug upgraded polymer-coated ntaub, peb lub tank muab heev durability nyob rau hauv kub ntawm -30℃rau +70℃thiab ncua kev pab cuam lub neej tshaj 6-8 xyoo-outperforming ntau pa qauv nyob rau hauv hnyav hnyav.
Lub tank txhawb ntau yam kev sau thiab kev tso kua dej nrog rau qhov nyoob hoom qav taub-raws li kev ntim khoom (xws li qhib- cov qauv saum toj kawg nkaus) thiab Frost- cov tshuab nqus dej tiv taus, muab kev yooj yim dua hauv kev ntim dej sai thiab kev nkag mus rau hauv dej thaum lub sijhawm ua haujlwm loj -.
Peb muab qhov ntev thiab kev sib txuas uas hloov tau raws li qhov yuav tsum tau ua ntawm lub hom phiaj tshwj xeeb -txawm yog kev tua hluav taws hauv av, dej hauv av, lossis kev cia thaum muaj xwm txheej ceev - kom ntseeg tau tias kev sib koom ua ke tsis sib haum nrog cov kev pab cuam uas twb muaj lawm.
Daim ntawv thov
1.Nruab qhov hluav taws kub hauv av tiv thaiv dej tiv thaiv los ntawm khov
2.Nruab qhov chaw saum toj kawg nkaus hauv av tua hluav taws tua dej cia
3.Rau koj cov dej cia thiab lwm yam.
Ua tsaug rau koj txoj kev txaus siab rau peb cov kev daws teeb meem dej siab heev. Yog tias koj xav tau cov ntsiab lus ntxiv, cov kev qhia tshwj xeeb, lossis cov lus hais, thov koj xav tiv tauj -peb nyob ntawm no los pab txhawb koj qhov kev npaj rau kev puas tsuaj thiab teb cov haujlwm nrog kev txawj ntse thiab kev ntseeg siab. Peb ntseeg tias Lub Hwj Chim Flexible Tank rau Kev Nyab Xeeb Kev Nyab Xeeb tuaj yeem ua rau koj txaus siab!
Cim npe nrov: Tuam Tshoj lub teeb yuag yooj ywm tank rau kev puas tsuaj nyem, Tuam Tshoj lub teeb yuag hloov pauv tank rau kev puas tsuaj nyem manufacturers
